What Is a Brake Caliper? Symptoms, Types & Replacement Guide

Brake calipers are a critical component of your car's braking system. Whether you're cruising on a motorway or navigating city traffic, your vehicle's ability to stop safely relies heavily on brake calipers. They work in tandem with brake pads and discs to ensure effective braking performance. In this guide, we'll explore what a brake caliper is, how it works, the different types available, and what UK drivers should know about maintenance and replacement.

SAVE A MINIMUM OF 10% ON YOUR WARRANTY TODAY

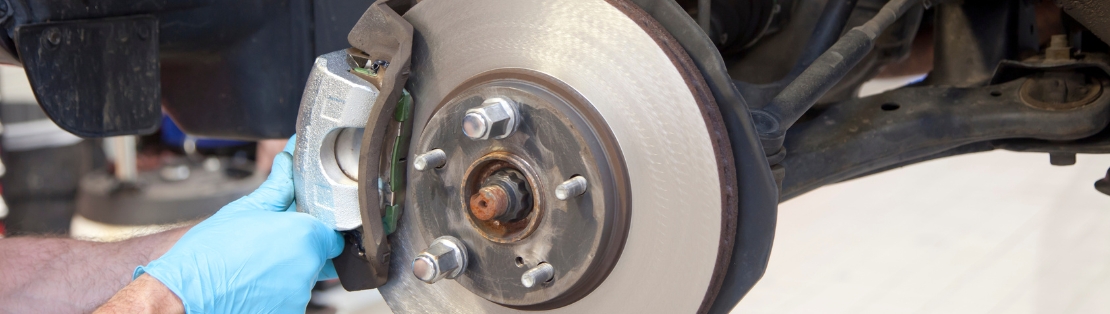

What Is a Brake Caliper?

A brake caliper is a crucial part of your vehicle's disc brake system, responsible for slowing down or stopping your car by squeezing the brake pads against the brake disc (also known as a rotor).

Housed within the caliper are one or more pistons, which are activated by hydraulic brake fluid pressure whenever you press the brake pedal. This pressure forces the brake pads to clamp onto the spinning disc attached to the wheel, creating the friction needed to decelerate or stop your car effectively.

Think of the brake caliper as a strong mechanical grip that tightens around a moving disc. Without it, your car wouldn't be able to stop safely or consistently-especially at higher speeds.

Most modern UK vehicles, from everyday hatchbacks to high-performance models with Brembo calipers, use disc brakes with calipers on at least the front wheels, and often on all four.

In the UK, both "caliper" and "calliper" are used, though "caliper" is more commonly adopted in automotive contexts.

How Do Car Brake Calipers Work?

Brake calipers use hydraulic pressure to press brake pads against the spinning disc, creating friction to slow your car. Below are the key steps that explain how brake calipers work in detail.

Step 1: Applying the Brakes

When you press the brake pedal, your car's brake master cylinder sends brake fluid (via hydraulic lines) to the caliper pistons.

Step 2: Hydraulic Pressure Builds

This fluid builds up pressure inside the caliper, forcing the pistons to move. The more firmly you press the brake pedal, the more pressure is applied.

Step 3: Brake Pads Engage the Disc

As the pistons move, they push the brake pads toward the brake disc. The pads clamp down on the spinning disc and create friction.

Step 4: Your Car Slows or Stops

This friction between the pads and disc is what slows the rotation of your wheels-bringing your car to a safe and controlled stop.

In sliding calipers, the caliper itself moves slightly to ensure pressure is applied evenly from both sides. In fixed calipers, there are pistons on both sides of the disc, which push the pads directly without sliding.

Types of Brake Calipers

Brake calipers come in a few different types, each designed to suit specific driving needs and vehicle types. The two main categories are fixed calipers and floating calipers, but there are also variations used in front and rear brake systems, motorcycles, and high-performance cars.

1. Fixed Brake Calipers

Fixed brake calipers are commonly used in high-performance and luxury vehicles due to their enhanced stopping power and precision. These calipers are designed with pistons on both sides of the brake disc (also known as the rotor), which allows for a more even and powerful clamping force. Many fixed calipers feature multiple pistons to further increase braking performance.

Unlike floating calipers, fixed calipers remain stationary during braking. Instead of sliding across the rotor, the pistons push the brake pads from both sides, ensuring balanced contact and reducing the chance of flexing or brake fade. This consistent and symmetrical pressure provides better responsiveness and heat distribution, which is why fixed calipers are a preferred choice for sports cars and performance vehicles. Brands like Brembo are widely known for their high-quality fixed caliper designs.

2. Floating Brake Calipers (Sliding Calipers)

Floating brake calipers, also known as sliding calipers, are the most common type found on standard vehicles across the UK. These calipers are designed with pistons on only one side of the rotor, typically using one or two pistons. When the brakes are applied, the piston pushes the inner brake pad against the disc. At the same time, the caliper slides across using a guide pin mechanism to pull the outer pad into contact with the disc. This sliding action ensures both sides of the disc are clamped effectively, even though pressure is only generated from one side.

Floating calipers are simpler, lighter, and more cost-effective to manufacture, which makes them ideal for everyday use. Their design also supports easier maintenance and replacement. Many models incorporate a pin-slide system that ensures even pressure on both pads, helping to reduce uneven pad wear over time. Although they may not offer the same high-level performance as fixed calipers, floating calipers are more than sufficient for regular driving conditions.

3. Front vs. Rear Brake Calipers

4. Motorcycle Calipers

Motorcycle brake calipers are typically more compact but designed for high precision. They can be fixed or floating and are crucial for two-wheeled safety.

5. Brembo Calipers

A premium brand of high-performance brake calipers, Brembo is known for its advanced technology and eye-catching designs-like red calipers often seen on sports cars.

Brake Caliper Components: What's Inside and Why It Matters

A brake caliper houses several key parts that work together to slow your car:

Understanding these components helps you spot early signs of wear-like rusted slide pins or leaking seals-before they lead to brake failure.

Brake Pads and Calipers - How They Work Together

The brake pads are the friction material that contact the disc when the caliper pistons apply pressure. Over time, pads wear out and need replacing. Often, when brake pads wear unevenly or too quickly, it's due to a malfunctioning caliper.

It's recommended to check and replace brake calipers and pads together for optimal performance.

Signs of Potential Brake Caliper Failure

Brake calipers play a vital role in your vehicle's braking system. When they begin to fail, there are usually several warning signs that indicate it is time for an inspection, repair, or replacement. Ignoring these signs can lead to serious safety risks and expensive repairs.

1. Vehicle Pulling to One Side During Braking

If your car pulls to one side when you apply the brakes, it may be due to a stuck or retracted caliper piston. This creates uneven pressure between the wheels and negatively impacts braking distance and control.

2. Uneven or Rapid Brake Pad Wear

Brake pads should wear down evenly over time. If you notice that one pad is wearing faster than the other, or if pads on one wheel are thinner than the opposite side, it could be due to a clogged or seized caliper. Clogged calipers cause excessive heat buildup and can quickly damage the brake pads.

3. Brake Fluid Leaks

A damaged or worn-out piston seal can lead to brake fluid leaks from the caliper. If you notice fluid on the ground near your wheels or see a brake warning light on your dashboard, it is important to have your braking system inspected immediately. Low brake fluid levels can compromise overall braking performance.

4. Excessive Brake Dust or Clouding

If you see an unusual amount of brake dust on your wheels or in the air after braking, it might be caused by a seized caliper. When a caliper piston is stuck against the brake pad, it creates constant friction. This can feel like the brake is always slightly engaged, reducing fuel efficiency and potentially making it difficult to move the vehicle.

5. High-Pitched Squealing When Braking

A squealing sound when braking is often caused by worn pads, but it can also point to a defective or frozen caliper. If the caliper does not release properly, it will keep the pads in contact with the rotor, causing continuous noise and further wear.

6. Clunking Noise Under Braking

If you hear a clunking sound when applying the brakes, it may mean the caliper bracket or mounting bolts are damaged or loose. Although rare, this issue should be taken seriously, as it could cause the caliper to shift out of position and lead to brake lockup or failure.

7. Brake Warning Light Illuminated

Modern cars are equipped with brake sensors that can detect issues within the braking system. If your brake warning light comes on, especially after noticing any of the above symptoms, it is best to have the vehicle inspected by a professional mechanic.

What Causes Brake Calipers to Stick?

Sticking brake calipers are a common issue that can lead to reduced braking performance and uneven wear. Here are the main reasons why brake calipers may stick:

1. Rust or Corrosion on Guide Pins

One of the most frequent causes is rust build-up on the caliper slide pins. These pins help the caliper move smoothly, but if they become corroded or dry, the caliper can seize and fail to release properly.

2. Uneven or Worn Brake Pads

When brake pads wear unevenly, they can cause the caliper to misalign and stick against the brake disc. This increases friction and may cause the car to pull to one side when braking.

3. Contaminated Brake Fluid

Old or dirty brake fluid can absorb moisture, leading to internal corrosion in the caliper. This often affects the caliper piston, making it stick inside the bore instead of moving freely.

4. Damaged or Worn-Out Calipers

Over time, calipers can wear out due to heat, pressure, and general use. A worn or damaged caliper may become sluggish or completely fail to retract, keeping the brake pads in constant contact with the disc.

How Are Brake Calipers Connected to the Rest of the Braking System?

Brake calipers are connected to the braking system through hydraulic brake lines that carry pressurised brake fluid from the master cylinder. When you press the brake pedal, the fluid forces pistons inside the caliper to push the brake pads against the brake disc, creating friction to slow the car. The caliper is securely mounted to the wheel hub and works in tandem with the brake pads, discs, and fluid to deliver safe and controlled braking.

Cost of Brake Caliper Replacement in the UK

The cost of replacing brake calipers in the UK can vary widely depending on your vehicle's make and model, the type of calipers being used, and whether you choose a garage or dealership for the replacement. On average, you can expect to pay between £120 and £250 for a front brake caliper and £100 to £200 for a rear brake caliper. These prices typically cover the cost of the part itself.

In addition to the cost of the calipers, you also need to factor in labour charges, which range from £50 to £150 per axle, depending on the complexity of the job and your location. Labour costs may be higher for high-end or imported vehicles due to the additional time and care required.

Although some car owners consider replacing calipers as a DIY job, it is important to understand that the braking system is a critical safety component. Unless you have mechanical expertise, it is strongly recommended to have calipers fitted by a qualified professional to ensure proper function and road safety.

How Often Should You Replace a Brake Caliper?

Brake calipers are built to last, but like all components, they wear over time. It is recommended to replace your brake calipers every 10 years or 100,000 miles, whichever comes first. However, the actual lifespan can vary depending on your driving habits, environment, and how well the brake system is maintained.

In the UK, brake calipers are inspected annually during your MOT test. If there's an issue, such as sticking, leaking, or uneven brake pad wear, it will be identified during the inspection - giving you a chance to fix the problem before it leads to serious safety risks or further damage.

How to Fix a Stuck Brake Caliper

A stuck brake caliper can lead to poor braking performance, increased fuel usage, and uneven tyre or brake pad wear. If your caliper is jammed or not releasing properly, it's best to leave the repair to a qualified technician, as brakes are a critical safety component.

To address the issue, the vehicle needs to be safely lifted and the wheels removed. A professional will inspect the caliper pistons, guide pins, and surrounding parts for signs of corrosion, rust, or seizing. The affected components may be cleaned, lubricated, and reassembled.

If cleaning and lubrication do not solve the issue, the brake caliper may be beyond repair and require replacement.

Are brake calipers covered by extended warranty?

Brake calipers are covered under an extended warranty depends on the type of warranty you choose. Most extended warranties distinguish between wear-and-tear items (like brake pads and discs, which are typically not covered) and mechanical components like brake calipers, which are often covered if they fail due to a manufacturing defect or mechanical breakdown.

Brake calipers play a critical role in vehicle safety, so having them included in your warranty can offer peace of mind and help you avoid expensive repairs. Coverage usually applies when calipers seize, leak, or fail mechanically-not due to rust or poor maintenance.

If you're in the UK and looking for extended protection, Warranty Direct's Gold Cover warranty specifically includes brake calipers as part of its approved component list. This means if your brake caliper fails due to a covered reason, the repair or replacement cost could be taken care of under the policy.

Choosing a plan like Warranty Direct's Gold Cover ensures your essential braking components are protected-so you can drive with confidence, knowing help is there when you need it.

FAQs On Brake Calipers

1. How often should brake calipers be replaced?

Brake calipers typically last up to 100,000 miles or 10 years, but this can vary depending on driving conditions. They're inspected during your MOT and should be replaced if damaged or seized.

2. Can brake calipers be repaired or cleaned?

In some cases, sticking calipers can be fixed by cleaning, lubricating, or replacing the slide pins or seals. However, if the piston is seized or the caliper is damaged, it's best to replace it.

3. Are painted or coloured calipers just for looks?

Mostly yes, but some high-performance brake calipers (like Brembo) are painted to resist heat and corrosion. Painted calipers are also popular for styling and customisation.

4. What is a brake caliper rewind tool?

A brake caliper rewind tool is a specialised tool used to retract the caliper piston back into its housing when changing brake pads. This is especially important for rear brake calipers, which often have a screw-type mechanism due to the car parking brake function. Using the correct rewind tool helps avoid damage to the piston and seals, ensuring proper installation and brake performance.

5. Should brake calipers be replaced in pairs?

While it's not always mandatory, it's highly recommended to replace brake calipers in pairs (both front or both rear) for balanced braking performance. A new caliper may function more efficiently than an old one, which can lead to uneven braking. Replacing them in pairs ensures even pad wear, stable handling, and optimal safety, especially under hard braking.

Conclusion

Brake calipers are essential for your car's safety, helping convert hydraulic pressure into the stopping force you rely on. Over time, they can wear out or seize, leading to uneven braking or reduced performance. Regular checks and timely repairs can prevent serious issues and costly damage. For extra peace of mind, consider extended warranty cover. Warranty Direct's Gold Cover includes protection for key components like brake calipers, offering UK drivers reliable support against unexpected repair costs. With comprehensive coverage, you can drive with confidence knowing that your braking system-and your wallet-are well protected.
